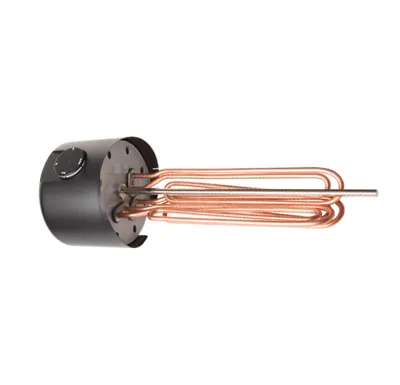

Dražice SE 378 Vestavná elektrická topná jednotka přírubová

Typ

REU18-2,5

RDU18-3,8

RDU18-5

RDU18-6

RDW18-7,5

RDW18-10

RSW18-12

RSW18-15

SE377

SE378

Objednací číslo

100541551

100541562

100541563

100541564

100541570

100541571

100541580

100541581

100541517

100541511

Příkon

[kW]

2,5

3,8

5

6

7,5

10

12

15

8-11-16

9,5-12,7-19

Hmotnost

[kg]

3

3,5

3,5

3,5

3,7

4

4

4,2

8

11,5

Zástavbová délka

[mm]

450

530

630

610

740

Elektrické připojení

1/N/PE~

230V/

50Hz

3/N/PE~400V/50Hz,Y

3/N/PE~400V/50Hz,∆

Doporučená hodnota jističe

[A]

16

3×10

3×10

3×16

3×16

3×20

3×20

3×25

3×25

3×32

Elektrické krytí

IPX4

IP20

Doba ohřevu cca 300l10–60°C

[h]

8

5

4

3

2,5

2

1,5

1,3

2-2-1,3

2-1,5-1

Typ

REU18-2,5

RDU18-3,8

RDU18-5

RDU18-6

RDW18-7,5

RDW18-10

RSW18-12

RSW18-15

SE377

SE378

OKCE 300S

●

●

●

●

●

●

●

–

–

–

OKCE 500S

●

●

●

●

●

●

●

●

–

–

OKC 300NTR/BP

●

●

●

●

●

●

–

–

–

–

OKC 300NTRR/BP

●

●

●

●

●

●

–

–

–

–

OKC 500NTR/BP

●

●

●

●

●

●

–

–

–

–

OKC 500NTRR/BP

●

●

●

●

●

●

–

–

–

–

OKC 300NTR/HP

▲

▲

▲

▲

▲

▲

–

–

–

–

OKC 500NTR/HP

▲

▲

▲

▲

▲

▲

–

–

–

–

Typ

REU18–2,5

RDU18–3,8

RDU18–5

RDU18–6

RDW18–7,5

RDW18–10

RSW18–12

 RSW18–15

NAD 500 v1

●

●

●

●

●

●

●

–

NAD 750 v1

●

●

●

●

●

●

●

NAD 1000 v1

●

●

●

●

●

●

●

●

NAD 500 v3

●

●

●

●

●

●

●

–

NAD 750 v3

●

●

●

●

●

●

●

●

NAD 1000 v3

●

●

●

●

●

●

●

●

NAD 500 v4

●

●

●

●

●

●

–

–

NAD 750 v4

●

●

●

●

●

●

●

–

NAD 1000 v4

●

●

●

●

●

●

●

●

NADO 500/140 v1

●

●

●

●

●

●

●

–

NADO 750/140 v1

●

●

●

●

●

●

●

●

NADO 1000/140 v1

●

●

●

●

●

●

●

●

NADO 500/200 v1

●

●

●

●

●

●

–

NADO 750/200 v1

●

●

●

●

●

●

●

●

NADO 1000/200 v1

●

●

●

NADO 500/140 v2

●

●

●

●

●

–

–

NADO 750/140 v2

●

●

●

●

●

●

●

–

NADO 1000/140 v2

●

●

●

●

●

●

●

●

NADO 300/20 v11

●

●

●

●

●

●

–

–

NADO 400/20 v11

●

●

●

●

●

●

–

–

NADO 750/25 v11

●

●

●

●

●

●

●

–

NADO 1000/25 v11

●

●

●

●

●

●

●

●
